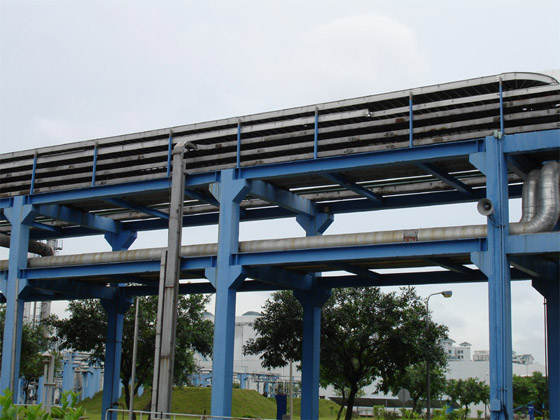

Cable tray is widely used in petroleum, chemical industry, electric power, telecommunications and other industries. It is mainly used for the laying of power cables, control cables, lighting lines and telecommunications cables. The bottom plates of various existing cable trays are flat plate structures. Due to the large span of the bridge, the weight of the cable and the bridge itself is also large. In order to ensure the bearing capacity, the metal materials pressing the bridge tray need to have corresponding thickness and strength. At present, the steel plate of about 3mm is generally used to meet the strength requirements. The bridge made of such thick steel plate has considerable weight, so the manufacturing cost is relatively high, which brings great difficulties to transportation and construction lifting. Moreover, during the operation of the line after the completion of construction, due to its own heavy, coupled with the natural loosening of vibration fixing parts and supporting parts, the bridge gradually sinks, which is easy to lead to accidents and increase the difficulty and amount of maintenance. These situations have become common and long-standing problems in the project.

針對上述問題，輕型防震電纜橋架被逐漸獲得關注，并發展起來了。該電纜橋架可以在保證原承載能力的情況下減輕橋架自重，降低能耗，降低因震動而產生的隱患。

In view of the above problems, light shockproof cable bridge has been gradually paid attention to and developed. The cable bridge can reduce the dead weight of the bridge, reduce energy consumption and reduce the hidden dangers caused by vibration under the condition of ensuring the original bearing capacity.

輕型電纜橋架結構：包括底板和分置于底板兩端并與其互相垂直的橋架梯邊，底板和梯邊為整塊鋼板沖壓而成，在底板和梯邊的連接處設有倒S彎，能夠減弱震動產生的沖擊力,起到防震的功能。底板上設有縱橫加強筋。即在底板寬度方向的中間部位設置橫向加強筋，橫向加強筋的兩側設有縱向加強筋。加強筋為長圓槽形。加強筋為模具一次沖壓成形，錯落有致，外形美觀。

Light cable bridge structure: it includes the bottom plate and the bridge ladder edge placed at both ends of the bottom plate and perpendicular to each other. The bottom plate and ladder edge are stamped from a whole steel plate. An inverted S-bend is set at the connection between the bottom plate and ladder edge, which can reduce the impact force caused by vibration and play the function of earthquake prevention. The bottom plate is provided with vertical and horizontal stiffeners. That is, transverse stiffeners are set in the middle of the width direction of the bottom plate, and longitudinal stiffeners are set on both sides of the transverse stiffeners. The stiffener is in the shape of long circular groove. The stiffener is formed by one-time stamping of the die, which is staggered and beautiful in appearance.

電纜橋架底板上增加了加強筋后，所用材料料厚非常薄，可以使鋼板厚度減小了一半，同等條件下，橋架重量將近減小了一半，而強度和承載能力仍保持不變，大大降低了能耗，節省了施工成本，降低了運輸費用、采購成本和施工難度，解決了因為橋架自重過大而導致的塌陷問題。同時，在底板和梯邊的連接處設置的倒S彎，能夠解決因為震動而產生的沖擊力，具有防震的功能。采用該電纜橋架后，原來需用專門設備才能完成舉升操作，人工就可完成。這樣大幅度提高了施工效率，提高了工作進度，節省了施工費用，降低了能耗，提高了經濟效益。。

The thickness of the steel plate used in the bridge is nearly half that of the steel plate used in the construction, and the energy consumption can be greatly reduced by strengthening the thickness of the steel plate and the thickness of the steel plate used in the bridge. After the construction, the energy consumption can be reduced by nearly half, and the thickness of the steel plate is still the same as that of the bottom plate, The problem of collapse caused by excessive dead weight of the bridge is solved. At the same time, the inverted S-bend set at the connection between the bottom plate and the ladder edge can solve the impact force caused by vibration and has the function of earthquake prevention. After the cable bridge is adopted, the lifting operation can be completed only with special equipment, which can be completed manually. In this way, the construction efficiency is greatly improved, the work progress is improved, the construction cost is saved, the energy consumption is reduced, and the economic benefit is improved..
